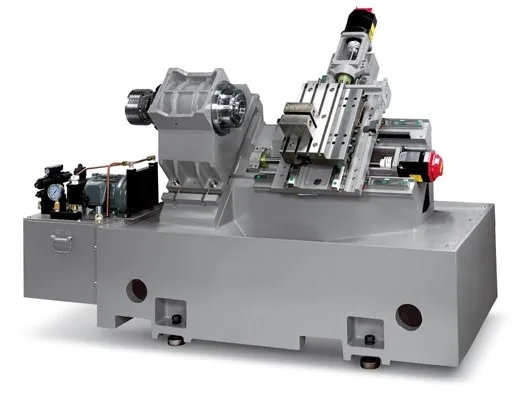

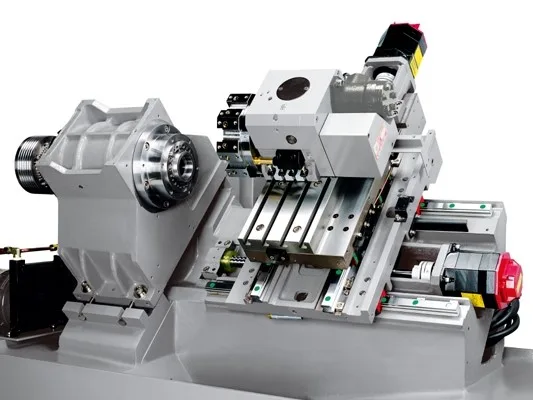

Leadwell T5 Compact CNC Lathe
Siemens 802D SL
POA
CNC-0-0502 | Prices exclude GST
Product overview
About this machine.
Quality Taiwanese Manufacturing
Standard Accessories:
- Full guarding
- 3 jaw through hole hydraulic chuck
- Hydraulic unit RS232 interface
- Fanuc OTD
Options:
- Chain type chip conveyor & bucket
- Collet Chuck
- Parts catcher
- Bar feeder
- Bar feeder interface
- Pneumatic door
- Single point spindle orientation
- Multi point spindle orientation
- Loading/unloading system
- Other controls
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | T-5 | |
|---|---|---|
| Capacity | mm | 330 |
| Bar Capacity | mm | 35 |
| Chuck size | inch | 6 |
| Travel | ||
| X axis | mm | 230 |
| Z axis | mm | 230 |
| Spindle | ||
| Spindle speed | rpm | 45-4500 |
| Spindle nose | A2-5 | |
| Through hole spindle | mm | 62 |
| Turret | ||
| Number of tool positions | 12 | |
| Turret indexing time | sec | 1 |
| Feedrate | ||
| X rapid traverse | m/min | 20 |
| Z rapid traverse | m/min | 24 |
| Motor | ||
| Spindle Motor | HP | 15 |
| Miscellaneous | ||
| Machine weight | kg | 2800 |
