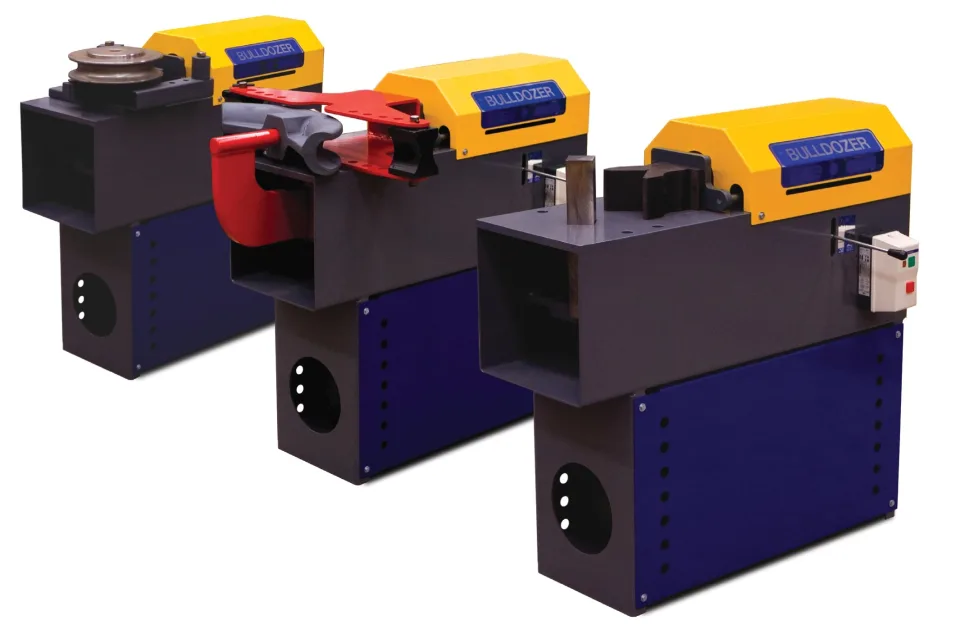

BULLDOZER 20 Tonne Horizontal Hydraulic Bending Machine
POA
BEND-0-3020 | Prices exclude GST
Product overview
About this machine.
The Bulldozer horizontal hydraulic bending machine delivers powerful, precise bending for a wide range of metal tubing and profiles. Designed for efficiency and heavy-duty performance, it features a robust hydraulic system and a horizontal bending setup that ensures smooth, consistent results. Ideal for workshops, fabrication, and industrial applications, this machine combines strength, reliability, and ease of operation to handle demanding bending tasks with accuracy and repeatability
Features:
- Strong hard chrome horizontal bending ram
- Rigid structure
- Adjustable stroke stop for repeat bending
- Forward / reverse lever
- Start stop switch
- Toolpost 50x50mm
- Flat bending die A 75mm vee x 80mm H
- Flat bending die B 105mm vee x 80mm H
Optional:
- Pipe bending jig No.1 (12, 20, 25, 32, 38, 50mm pipe)
- Pipe bending jig No.2 (65, 75mm pipe)
- NZ made cast pipe formers (15, 20, 25, 32, 38, 50, 64, 75mm)
- Tube bending attachment
- Tube bending formers - Round 12.7, 16, 19, 22.2, 25.4mm
- Tube bending formers - Square 12.7, 16, 19, 22.2, 25.4mm
- Reinforcing bar bender
- Pipe notching attachment

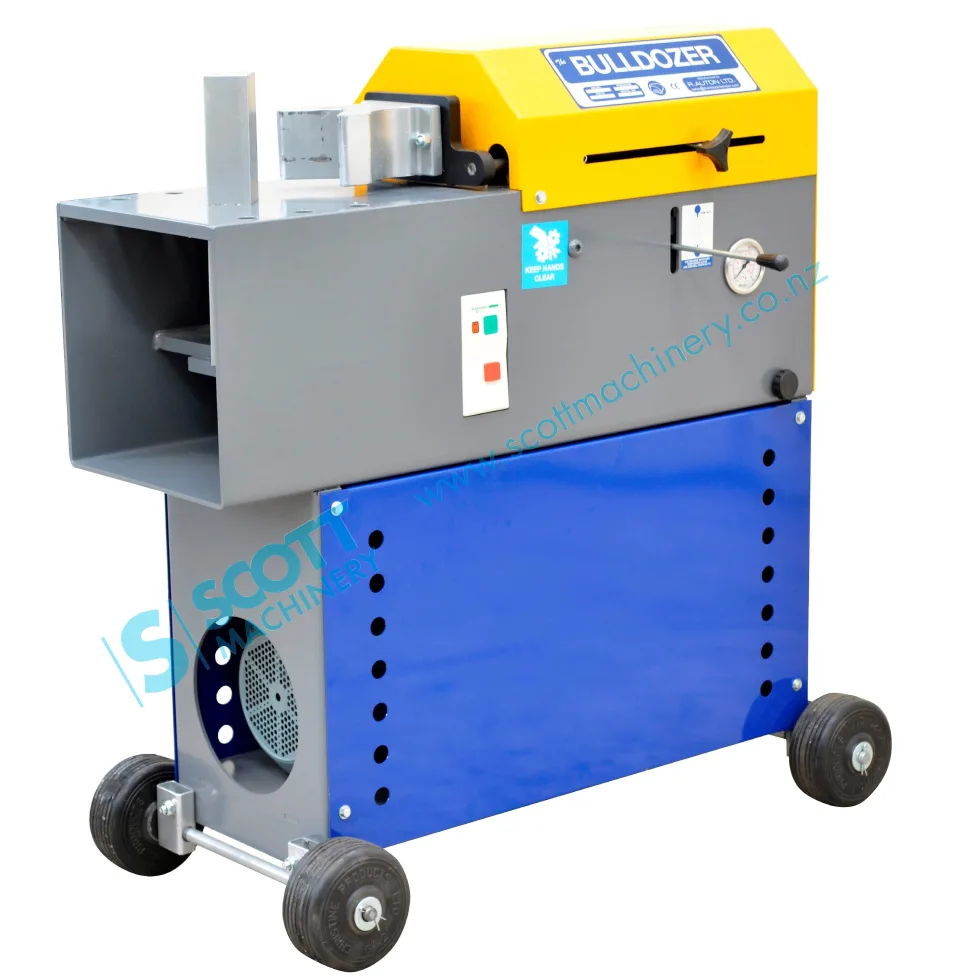

- Wheel kit (image 3)
- 300mm Sheet metal bending attachment
- 25 Tonne model with adjustable pressure
- Single phase power supply
- Portable Honda key start petrol powered
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Motor
5.5 HP 3 Phase 415v (Optionally available in 230v)
Pump
Hydraulic gear pump 6 litres per minute
Ram
20 Tonne
Stroke length
280mm
Ram shaft diameter
75mm
Weight (dry)
181 Kg
Oil capacity
8 litres
Machine dimensions (HxLxW)
910x910x310mm
