Baileigh RDB125 Tube & Pipe Rotary Draw Bender
Product overview
About this machine.

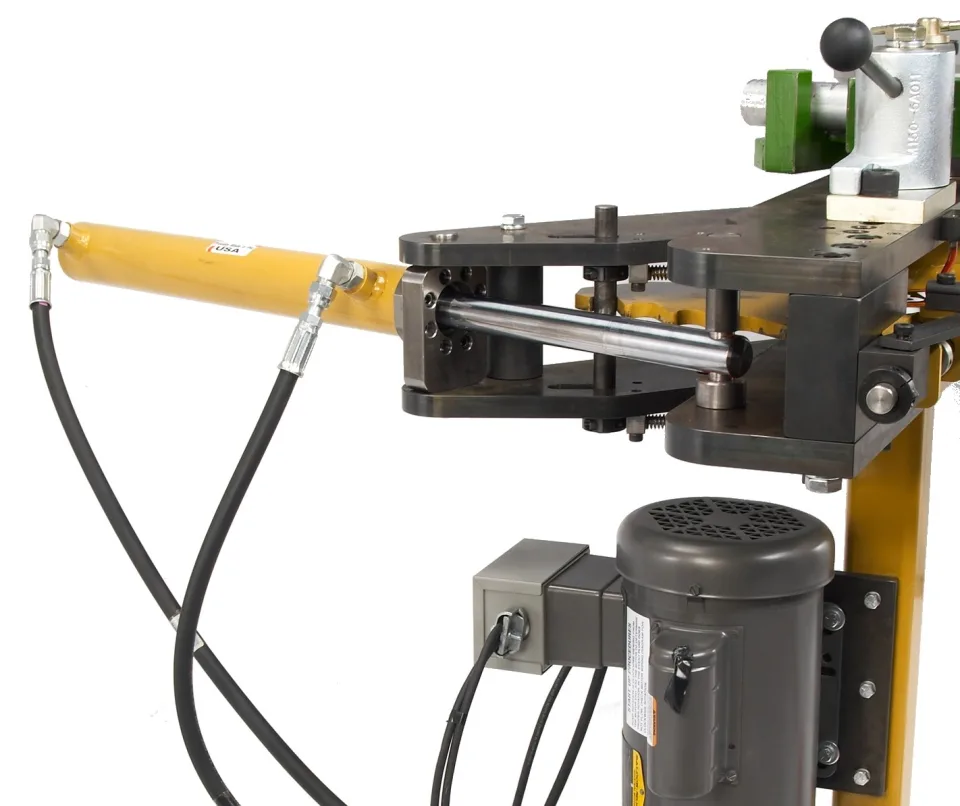

The RDB-125 tube and pipe bender is manufactured in the USA and is the perfect bender for the fabricator that wants a powered bender on a budget. The RDB-125 uses a simple single hydraulic cylinder to rotate the die and draw the section around it, this works alongside a clever ratcheting table that makes bends of up to 180 degrees possible. A vast array of formers are available to form tube, pipe, solid round, square and rectangular sections making for a very capable, lower budget machine. Baileigh Industrial's Pipe Benders are renowned for their durability, precision, and ease of use, making them a top choice for metal fabricators, race car builders, and industrial workshops. Their range includes manual, hydraulic, and CNC pipe benders designed to handle everything from simple bends to complex, repeatable production work. Built with heavy-duty steel frames and intuitive controls, Baileigh benders offer consistent, wrinkle-free results across a variety of pipe and tubing materials including mild steel, stainless steel and aluminium.
Baileigh Industrial is a leading U.S. manufacturer of metalworking and woodworking machinery, founded in 1999 in Wisconsin. Known for innovation like the first hydraulic tube bender to do 180 degrees bends in one shot, Baileigh offers a large selection of pipe/tube benders and well as industry leading panel beating, sheet metal and metal forming machinery. They are widely respected not only for durable, high-performance equipment but also for their excellent tutorial videos on youtube, helping users get the most from their machines.
Made in USA
Features:
- Up to 64mm OD capacity.

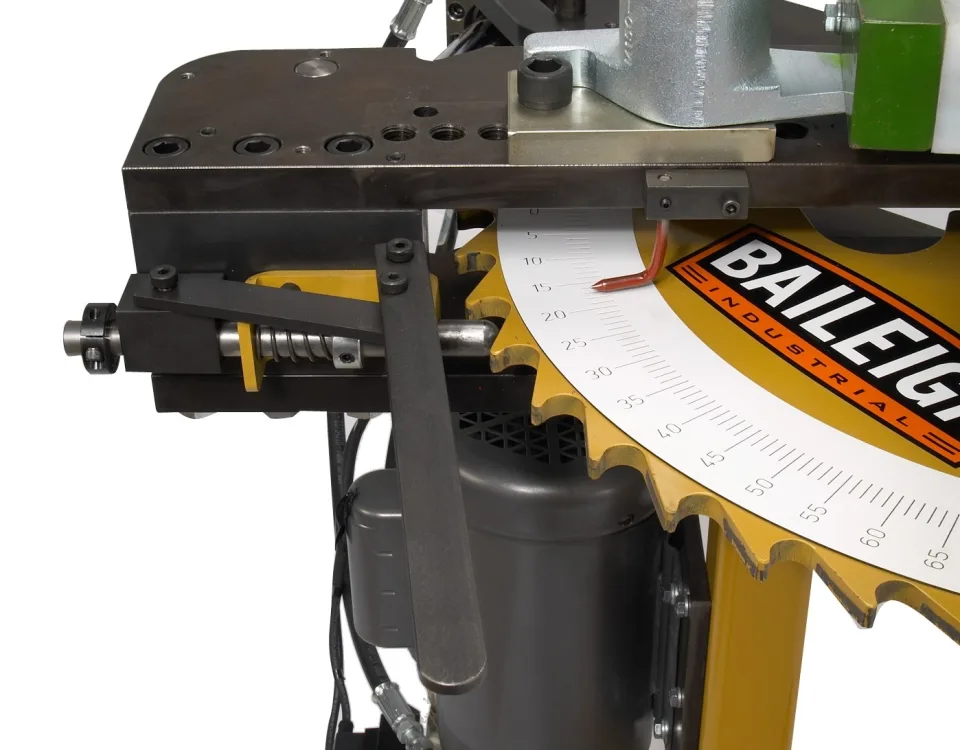

- Easy to read angle degree indicator with automatic stop adjustment.
- Quick release die follower for easy positioning and removal of tubing.
- Anti spring back mechanism.
- Portable. 230V single phase.
- Foot pedal operation.
- Low pressure industrial grade hydraulic system.
- Replaceable bronze bushings at all pivot points with grease nipples.
- Simplicity of design, few moving parts.

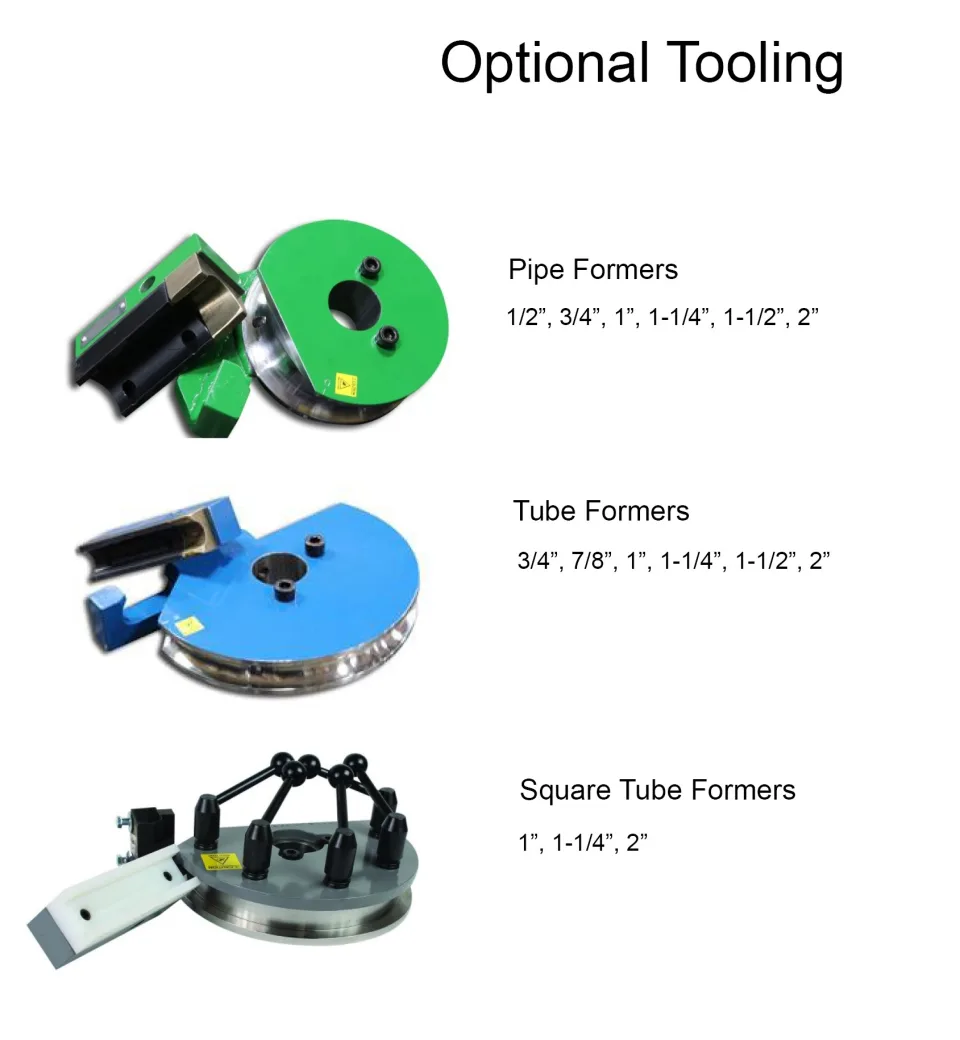

Optional :
- Pipe formers 1/2" - 2" NB
- Pipe former set RP-2B - 6 dies: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" NB
- Tube formers 6.5mm - 63.5mm OD
- Tube former set RT-2B - 6 dies: 19mm, 22.2mm, 25.4mm, 31.8mm, 38mm", 50.4mm OD
- Square formers 25mm - 50mm
- Square former set ST-1B - 5 dies: 12.7mm, 19mm, 25.4mm, 31.8mm, 38mm
- Various centre line tooling available via indent. Common sizes in stock.
- Rotary indexing table.
Nb. Machine supplied without tooling
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | RDB-125 | Capacity |
|---|---|---|
| Schedule 40 Round Pipe | Mild steel | 2" (60mm x 4mm) |
| Aluminium | 2" (60mm x 4mm) | |
| Stainless | 1.5" (48mm x 3mm) | |
| Round Tube | Mild steel | 2.5" (64mm x 3mm) |
| Aluminium | 2.5" (64mm x 4mm) | |
| Stainless | 2.375" (60mm x 3mm) | |
| Chromolly | 2" (50mm x 3mm) | |
| Square Tube (RHS) | Mild steel | 2" (50mm x 3mm) |
| Solid | Mild steel round rod | 32mm |
| Maximum centre line radius | 267mm | dependant on material & diameter |
| Motor | 230v /1ph /50hz | |
| Machine weight | 160 kg | |
| Machine dimension (LxWxH) | 1100mm x 560mm x 1100mm |
