Baileigh BR-18M-24 Manual Bead Roller
Product overview
About this machine.
The BR-18M-24 bead roller is a manually operated bead roller based off of their popular BR-18E-24. This bead roller is made from of a heavy steel framework that is electro welded for further rigidity. The bead depth is adjustable via the top roll. Baileigh offers many sets of tooling for the BR-18M-24 bead roller and the shaft diameter is 19mm and will fit most commercially available roll sets. All moving parts on the bead roller have bronze bushings for long life. Like most Baileigh bead rollers, the BR-18M-24 comes standard with a depth stop for perfectly straight beads, and a heavily constructed floor stand that includes a die rack. This bead roll is built to last.
Baileigh Industrial is a leading U.S. manufacturer of metalworking and woodworking machinery, founded in 1999 in Wisconsin. Known for innovation like the first hydraulic tube bender to do 180 degrees bends in one shot, Baileigh offers a large selection of pipe/tube benders and well as industry leading panel beating, sheet metal and metal forming machinery. They are widely respected not only for durable, high-performance equipment but also for their excellent tutorial videos on youtube, helping users get the most from their machines.
Features
- Fully welded heavy duty rigid frame
- 18-gauge (1.2mm) mild steel capacity
- 16-gauge (1.6mm) aluminium capacity

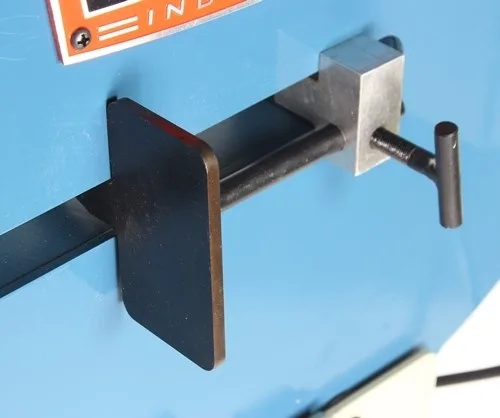

- Stand and depth stop included
- Adjustable length top and bottom shafts
- 610mm deep throat
- All moving parts are through bronze bearings with grease nipples for longevity.

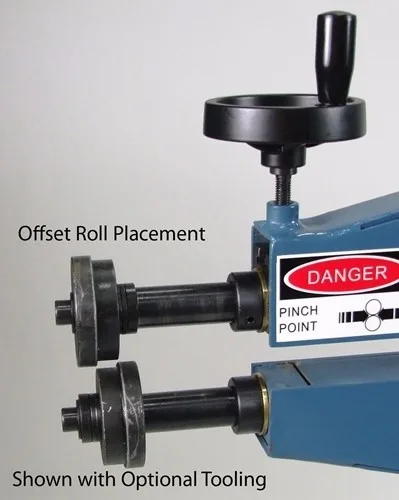

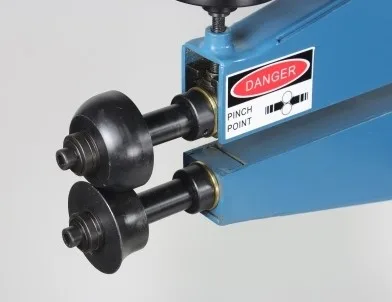

- Supplied with one set of tooling as shown in image #2
Optional

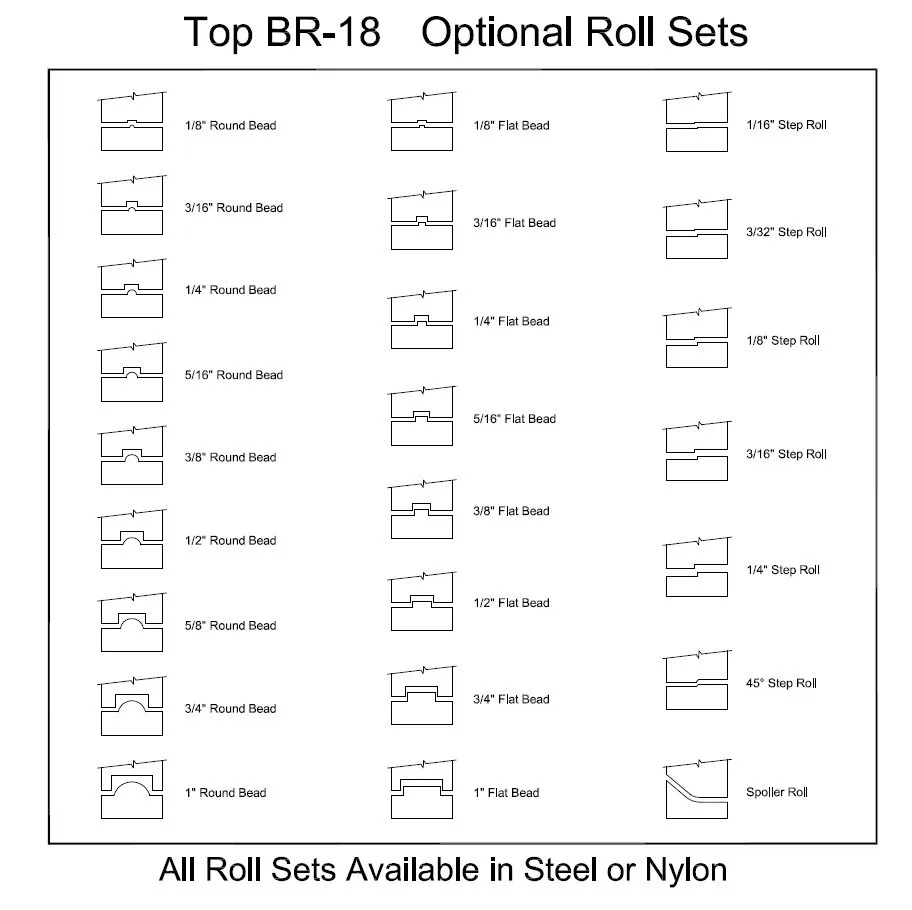

- Various tooling options available (see image #5)
- Work table (see image #6)
- Tipping roll set
