Optimum GU1 1Ph Dust Extractor
Product overview
About this machine.
Optimum Maschinen is a respected German company known for manufacturing high-quality machine tools built to strict European standards. Since its founding in 2003, Optimum has become a trusted name in the metalworking industry, offering a wide range of equipment including metal lathes, milling machines, drilling machines, and grinding tools. Designed in Germany and engineered for precision, reliability, and durability, Optimum machines are used across workshops, training centres, and industrial environments throughout Europe and beyond. Their products are developed with a strong emphasis on innovation, safety, and compliance with European CE regulations, ensuring exceptional performance and long service life.
The Optimum GU 1 Dust Extractor integrates a robust cyclone extraction system into a compact machine base, perfectly matched for GU and GU-S grinding units. Designed under Optimum's high standards of quality and reliability, this extractor automatically activates with a 2-3 second delay upon starting your grinder and continues briefly afterward, clearing residual dust in compliance with safety regulations

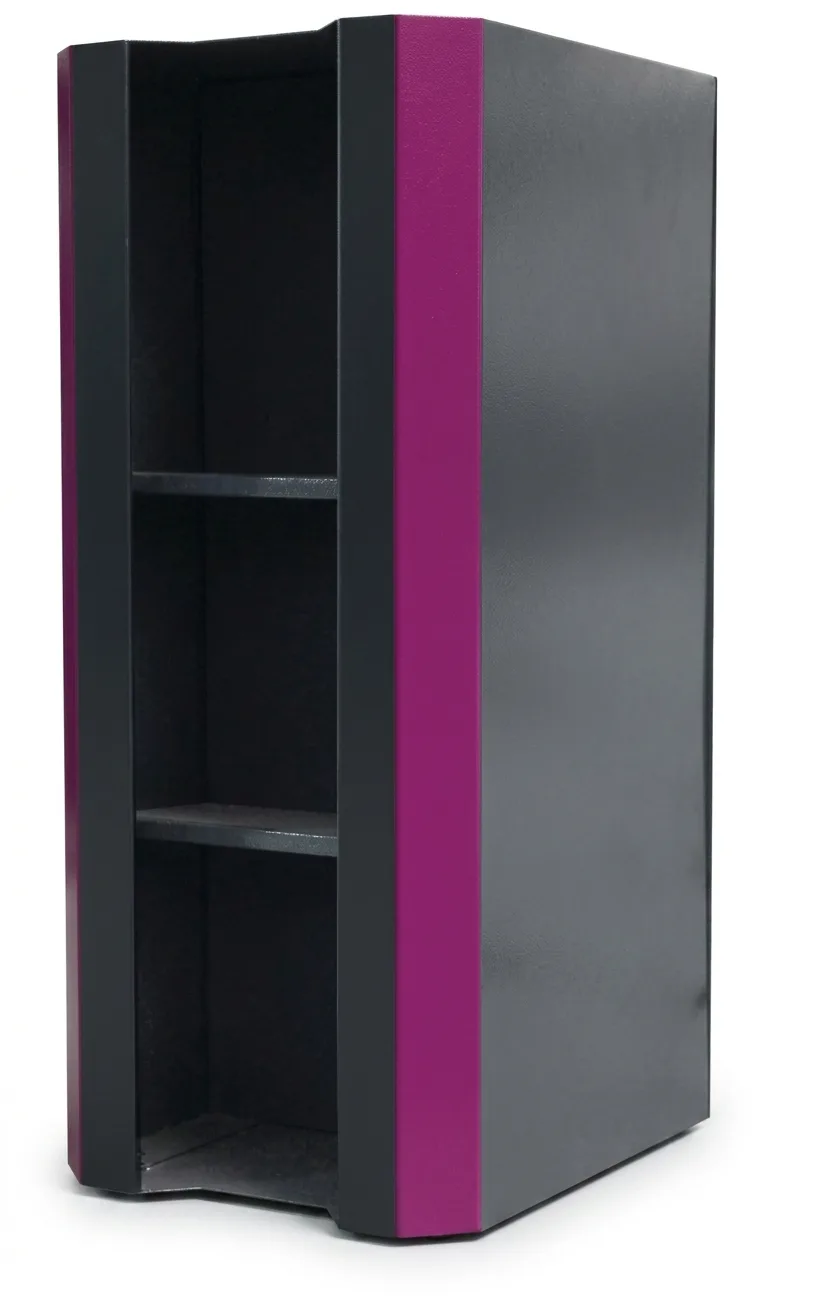

The Optimum GU1 machine substructure, designed for use with bench grinders, is equipped with a single motor that serves a dual purpose: 1. Drives the Dust Extraction System: The motor powers an integrated cyclone-style dust extraction system, ensuring efficient removal of airborne particles generated during grinding. 2. Powers the Grinder: The same motor also drives the grinder's operation, providing the necessary power for grinding tasks. This integrated motor system is available in both single-phase (230V) and three-phase (400V) configurations, catering to different power supply setups. Therefore, regardless of the electrical configuration, the Optimum GU1 features a single motor that handles both dust extraction and grinder operation.
******** Bench Grinder shown in the photos not included*******
Features:
- Cyclone extraction system integrated into the machine base
- Designed for use with Optimum GU / GU-S grinding machines
- Automatic start/stop with 2-3 second delay (on start and after shutdown)
- Power supply 230 V, single phase
- Motor output 1.3 kW
- Fan speed 29,000 rpm
- Airflow approx. 2.3 m3/min (varies slightly by source)
- Dust collection container capacity 8-10L
- Filter class L, fine dust compliant
- Noise-reduced housing with EMC Class C2 compliance
Safety features:
- Sound insulated housing for quieter operation
- Automatic start/stop function with 2-3 second delay (on start and shutdown)
Note:
- Adaptors and hoses may be needed to suit specific industrial needs
